Fun With KQL – Parse_JSON and ToDynamic

Introduction

In order to compact data, JSON is often used to store information within columns in databases. JSON is also useful when you want to store data, but the exact data is different on a row by row basis. Using JSON prevents the need to have a lot of extra columns that will be blank for many of the rows.

It becomes important then that a query language provides a simple method for unpacking that JSON data into useful columns. The Kusto Query Language provides that ability through the use of the parse_json scalar function. In this post we’ll look at examples of how to use it to expand data stored in JSON format.

Originally, parse_json was called todynamic, and the older todynamic function name still works. Both functions work and behave identically. In this post we’ll use the newer parse_json name, but be aware that for any example you could use the older todynamic name and get identical results.

The parse_json samples in this post will be run inside the LogAnalytics demo site found at https://aka.ms/LADemo. This demo site has been provided by Microsoft and can be used to learn the Kusto Query Language at no cost to you.

If you’ve not read my introductory post in this series, I’d advise you to do so now. It describes the user interface in detail. You’ll find it at https://arcanecode.com/2022/04/11/fun-with-kql-the-kusto-query-language/.

Note that my output may not look exactly like yours when you run the sample queries for several reasons. First, Microsoft only keeps a few days of demo data, which are constantly updated, so the dates and sample data won’t match the screen shots.

Second, I’ll be using the column tool (discussed in the introductory post) to limit the output to just the columns needed to demonstrate the query. Finally, Microsoft may make changes to both the user interface and the data structures between the time I write this and when you read it.

Parse_JSON Basics

In order to use this function, we’ll need a table that has a column with JSON formatted data. For that we’ll be using the InsightMetrics table, which has a column named Tags.

Here is a sample piece of data stored in the column. Be aware that not every row in this table has the same format for its JSON data. In addition the samples in the code below may not match the screen shots exactly.

For this example I’ve broken the JSON code into multiple lines to make it easier to read. If you look at the JSON columns inside the results pane you’ll just see one long string of text.

 {
   "vm.azm.ms/mountId":"C:"
 , "vm.azm.ms/diskSizeMB":129545.99609375
 }

Now let’s see how to use parse_json in our Kusto query.

In order to properly use parse_json, each row in the dataset must have a consistent format for its JSON formatted column. So for this example we’ll take the InsightMetrics table, then use where to restrict the rows where the Name column is FreeSpaceMB. The Tags column for FreeSpaceMB rows have the required consistent JSON formatting.

From here we use take to get a small sample for our demo (no sense in taking time to sift through 30,000 rows, the default maximum number of rows KQL will return in the user interface, for a simple demo). Next we flow into a project to just get the few columns we need.

Now we use the extend operator to create a new column, ExtProps. We use the parse_json function, and pass the Tags column into it. This will decompose the JSON data into the new ExtProps column.

In Kusto terms, they specify the new column as a datatype of dynamic. If you are familiar with PowerShell, this is actually created as a hash table, a list of key/value pairs. (If you aren’t familiar with PowerShell, you may want to take a look at my Fun With PowerShell) series.

Once we’ve unpacked the JSON into the ExtProps column, we flow into another project. The first three columns are a repeat of our original three.

Then we have our ExtProps column. In the first one, inside the square brackets [] we pass in the key we want, here vm.azm.ms/mountID. This will return the value associated with this key. If you refer to the JSON example above, this would be C:.

In the next ExtProps entry, we use the second key, vm.azm.ms/diskSizeMB. If you refer to the example above, this will return 129545.99609375.

In the image above, the last two columns are the unpacked JSON data.

More JSON columns

What if our JSON data was more than just two columns? Let’s take a look at an example with four key/values. As before I’ve expanded this to multiple lines to make it easier to read here, in the database it is all one long string.

{
  "container.azm.ms/clusterId":"/subscriptions/ebb79bc0-aa86-44a7-8111-cabbe0c43993/resourceGroups/CH1-GearamaRG/providers/Microsoft.ContainerService/managedClusters/CH1-GearamaAKS"
, "container.azm.ms/clusterName":"CH1-GearamaAKS"
, "hostName":"aks-nodepool1-18153691-vmss000000"
, "name":"sdb1"
}

We’ll again use the InsightMetrics table.

We use a where to limit the Namespace to container.azm.ms/diskio, the data associated with this Namespace has a JSON format that is consistent and resembles the four key/value pairs shown above.

We again use the same parse_json, passing in the Tags column.

In the project I simply reference the ExtProps column four times, passing in the keys for each one. I also used the project ability to rename these columns into something more human friendly.

Note, there is nothing special about the name ExtProps. I could have used any name I wanted, like TagProps, MyKeyValues, or even ArcaneCodeIsAwesome.

Case is Important!

Be aware, KQL is case sensitive when it comes to the JSON keys. When I was first developing these samples, I accidentally keyed in HostName = ExtProps["hostname"] then spent a few minutes scratching my head wondering why I wasn’t getting back any data for the HostName.

I finally realized I should have used hostName, and not hostname for the key (the N in Name is upper cased in the JSON). Once I got the casing correct, the query worked like it should have.

Property Notation

If, and only if, your JSON key has no spaces or special characters such as /, \, and so on, you can use what is called property notation.

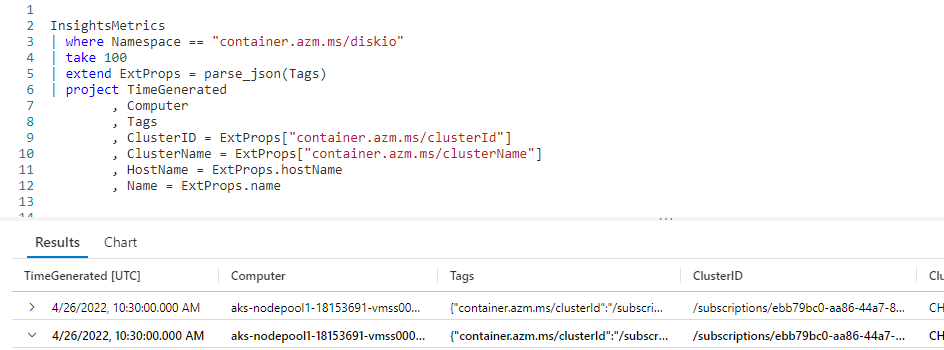

On the last two lines of the query, I was able to use ExtProps.hostName and ExtProps.name instead of needing to use the square brackets. This makes for a bit less typing and better readability. Note the case rules still apply with property notation, I needed to use hostName just as it was in the JSON.

For the ClusterID and ClusterName I still needed to pass the JSON keys within square brackets as they had special characters in the name.

Expanding Rows

This is a good time to point out a feature of the user interface. In the results pane at the bottom, to the very left of each row you’ll see a sideways triangle. If you click it, it will expand the row to display the columns under it vertically.

In this screen shot I clicked on the triangle on the second row (highlighted by the little red box in the image). This then expanded the row to display each column of data in a row under it. For results where many columns are returned, this can make it much easier to read the result for a specific row.

But wait, there’s more!

In the above screen shot, you may have noticed there is another arrow beside the Tags column. The interface figured out that the data contained in Tags is a dynamic datatype with JSON data.

Behind the scenes it used parse_json to unpack it, and break it into the individual columns (shown on rows under the Tags).

This is a useful tool for development. With this you can easily verify you are using the correct keys for writing your KQL code.

See Also

The following articles, operators, functions, and/or plugins were used or mentioned in this article’s demos. You can learn more about them in some of my previous posts, linked below.

Fun With KQL – Extend

Fun With KQL – Project

Fun With KQL – Take

Fun With KQL – Where

Fun With PowerShell

Conclusion

Finding JSON data stored in a database column is becoming more and more common today. It is fortunate that Kusto provides an easy to use way of extracting that data using the parse_json function. Remember for this to work in a query, each row must have a consistent format for its JSON.

I also want to add a final reminder, there is a version of parse_json named todynamic. Both functions work and behave identically, and can be used interchangeably. It’s important to remember this as you’ll find queries written both ways. When writing your queries though, you should prefer the use of the newer parse_json name.

The demos in this series of blog posts were inspired by my Pluralsight courses Kusto Query Language (KQL) from Scratch and Introduction to the Azure Data Migration Service, two of the many courses I have on Pluralsight. All of my courses are linked on my About Me page.

If you don’t have a Pluralsight subscription, just go to my list of courses on Pluralsight . At the top is a Try For Free button you can use to get a free 10 day subscription to Pluralsight, with which you can watch my courses, or any other course on the site.

Advertisement

Fun With KQL – Between

Introduction

It’s not uncommon to want to use a range of values when creating a Kusto query. This might be a range of numeric values, or perhaps a range of dates.

Kusto provides this ability using the between operator. In this post we’ll see how to use it when authoring your Kusto queries.

Just between you and me, the samples in this post will be run inside the LogAnalytics demo site found at https://aka.ms/LADemo. This demo site has been provided by Microsoft and can be used to learn the Kusto Query Language at no cost to you.

If you’ve not read my introductory post in this series, I’d advise you to do so now. It describes the user interface in detail. You’ll find it at https://arcanecode.com/2022/04/11/fun-with-kql-the-kusto-query-language/.

Note that my output may not look exactly like yours when you run the sample queries for several reasons. First, Microsoft only keeps a few days of demo data, which are constantly updated, so the dates and sample data won’t match the screen shots.

Second, I’ll be using the column tool (discussed in the introductory post) to limit the output to just the columns needed to demonstrate the query. Finally, Microsoft may make changes to both the user interface and the data structures between the time I write this and when you read it.

Between for Numeric Ranges

Let’s say you want to grab records from the Perf table for the percentage of free disk space. But you only want to see it when the CounterValue is greater than or equal to 70 percent, up to 100 percent.

You could write the where operator like where CounterValue >= 70 and CounterValue <= 100, but that gets a bit wordy. The between operator is not only easier to read, but is more efficient.

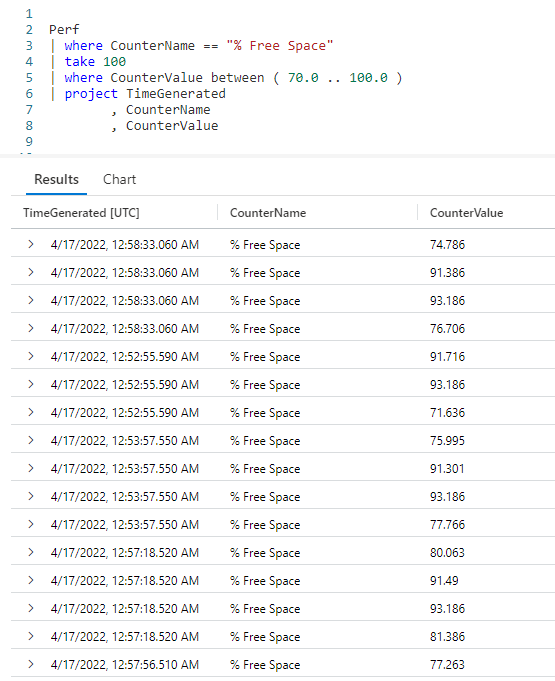

We start with the Perf table, then use a where to limit the dataset to only rows that hold the % Free Space counter data. We then use a take operator, to keep the demo sample small.

Now comes the star of this post, the between. Using a where, you specify the column name. Then comes the between operator. In parentheses, you place the starting value, two periods, then the ending value. Here, we go from 70.0 up to 100.0. This will include all rows with the starting value, 70.0, as well as rows with the ending value of 100.0.

In the results, you can see only rows in our specified range were included in the results. As I mentioned, the between is not only easier to read, it can be more efficient than using the where CounterValue >= 70 and CounterValue <= 100 construction I mentioned earlier.

Between for Date Ranges

In the introduction I mentioned you could use between for more than just a numeric range. It can also be used with dates.

In the where operator we used hard coded dates of April 12 to April 18, 2022. We had to put the dates in YYYY-MM-DD format. Because these are strings, we needed to use the datetime function to convert from a string to a datetime datatype.

In the result pane you can see all of our dates fell into the specified range.

Between Dynamic Dates

Hard coded dates may be OK for a quick, impromptu query, but for Kusto queries you’ll want to run repeatedly having dynamic dates makes more sense.

In this example we used ago(7d) to go back one week, with an ending date of right now by using the now function. If you want to read more about these two functions see the See Also section below for links to past articles I’ve written about them.

Not Between

Sometimes it makes more sense to write your Kusto query to exclude a range. For that, KQL includes a not between operator.

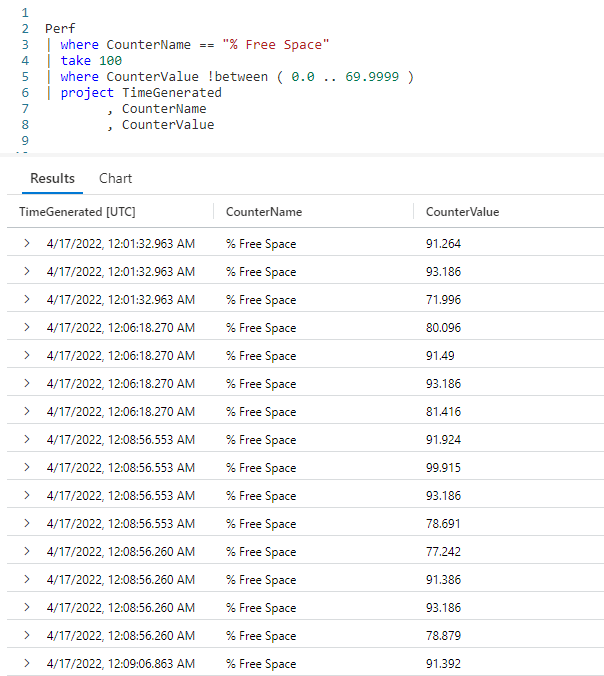

In this example we used !between to exclude counter values in the range of 0.00 up to and including 69.999. This produced the same results as our first example.

See Also

The following operators, functions, and/or plugins were used or mentioned in this article’s demos. You can learn more about them in some of my previous posts, linked below.

Fun With KQL – Ago

Fun With KQL – DateTime Arithmetic

Fun With KQL – EndOf

Fun With KQL – Now

Fun With KQL – Project

Fun With KQL – StartOf

Fun With KQL – Take

Fun With KQL – Where

Conclusion

Using the between operator allows you to not only write more readable queries, but ones that are more efficent.

The demos in this series of blog posts were inspired by my Pluralsight courses Kusto Query Language (KQL) from Scratch and Introduction to the Azure Data Migration Service, two of the many courses I have on Pluralsight. All of my courses are linked on my About Me page.

If you don’t have a Pluralsight subscription, just go to my list of courses on Pluralsight . At the top is a Try For Free button you can use to get a free 10 day subscription to Pluralsight, with which you can watch my courses, or any other course on the site.

Fun With KQL – EndOf

Introduction

My post, Fun With KQL – DateTime Arithmetic, demonstrated how to do date / time math in Kusto. Then in my previous post, Fun With KQL – StartOf, we showed how to use the StartOf... functions, to calculate the beginning of time periods based on a date that is passed in.

If you’ve not read the previous post I’d highly encourage you to do so now, as there are parallels between it and the endof... functions we’ll discuss in this article, namely endofday, endofmonth, endofyear, and endofweek.

The samples in this post will be run inside the LogAnalytics demo site found at https://aka.ms/LADemo. This demo site has been provided by Microsoft and can be used to learn the Kusto Query Language at no cost to you.

If you’ve not read my introductory post in this series, I’d advise you to do so now. It describes the user interface in detail. You’ll find it at https://arcanecode.com/2022/04/11/fun-with-kql-the-kusto-query-language/.

Note that my output may not look exactly like yours when you run the sample queries for several reasons. First, Microsoft only keeps a few days of demo data, which are constantly updated, so the dates and sample data won’t match the screen shots.

Second, I’ll be using the column tool (discussed in the introductory post) to limit the output to just the columns needed to demonstrate the query. Finally, Microsoft may make changes to both the user interface and the data structures between the time I write this and when you read it.

EndOf Basics

Let’s start with a simple query. We’ll take the TimeGenerated column from our query and add a new column to display the end of that day.

We took our Perf table and piped it into the where operator to get all rows since the start of the current year. That in turn was piped into a take, to grab just a few rows for this demo.

Now our function comes into play. We use the extend operator to create a new column, DayGenerated. This is set equal to the endofday function, into which we pass the TimeGenerated column.

Finally we use a project to limit the columns to the results pane a the bottom.

In the results pane you can see the two date columns, TimeGenerated and DayGenerated. The both show the same date, but the time in the DayGenerated column will always be 11:59:59.999 PM. This time is always returned for an endof... functions return value, whether you use endofday, endofmonth, endofyear, or endofweek.

Summarize by End of Day

Let’s turn to common use for the endof functions, the ability to summarize for a time period.

As in the previous example we piped Perf into a where to limit to data from the start of the year. Then we used extend to add a new column which is the end of the day for the TimeGenerated column.

We then used project to narrow down the list of columns. From here we used the summarize operator to create a count of the number of entires into the Perf table based on the new DayGenerated column and the name of the Computer.

Summarize by End of Month

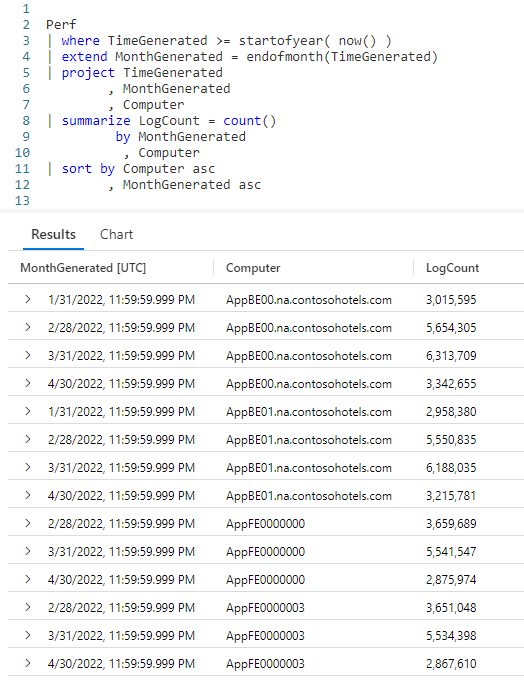

We can also create summaries for the end of each month.

This query is the same as the one in the previous end of day section, except we use the endofmonth function. In the output you can see, for the computer AppBE00.na.constosohotels.com, we get the last day of each month from January 2022 until April 2022. Note it is April 2022 as I write this, so April is the most recent month we have data for.

Summarize by End Of Year

I’m sure you are getting the hang of this by now, even so let’s see a few more examples. Here, we’ll summarize by the end of the year.

In the where clause of this query, I used startofyear( now(-768d) ). I showed this technique in the previous post Fun With KQL – StartOf. Passing in a negative value into the now function subtracts that many days from the current date.

As there are 365 days in a year, we double that to get 768. It’s April 21, 2022 as I write this, thus it would return April 21,2020. The start of that year was January 1, 2020. Thus the where clause will return all rows where the TimeGenerated is greater than January 1, 2020.

In this case it doesn’t make a great deal of difference, since the sample data doesn’t go back that far, but I wanted to take this chance to remind you of the techniques to return several years worth of data in your query, especially as doing year end summaries would often be done jointly with returning multiple years of data.

Summarize by End Of Week

As our last example, lets see the endofweek function used alongside the summarize operator.

This query works as the others, except of course we use the endofweek function. In the results pane you can see the WeekGenerated column has the last day of each week, by default a Saturday. This is in contrast to the startofweek function, where weeks start on Sundays.

See Also

The following operators, functions, and/or plugins were used or mentioned in this article’s demos. You can learn more about them in some of my previous posts, linked below.

Fun With KQL – DateTime Arithmetic

Fun With KQL – Extend

Fun With KQL – Project

Fun With KQL – Sort

Fun With KQL – StartOf

Fun With KQL – Summarize

Fun With KQL – Take

Fun With KQL – Where

Conclusion

In this post we saw how to use the endof... series of functions to calculate period ending dates dynamically. We then saw how to use the various endof... functions to group data into discrete time buckets using summarize.

The demos in this series of blog posts were inspired by my Pluralsight courses Kusto Query Language (KQL) from Scratch and Introduction to the Azure Data Migration Service, two of the many courses I have on Pluralsight. All of my courses are linked on my About Me page.

If you don’t have a Pluralsight subscription, just go to my list of courses on Pluralsight . At the top is a Try For Free button you can use to get a free 10 day subscription to Pluralsight, with which you can watch my courses, or any other course on the site.

Introduction to the SQL Server Mobile Report Publisher – Now Live on Pluralsight

My latest Pluralsight course, Introduction to the SQL Server Mobile Report Publisher, just went live!

The Mobile Report Publisher is a powerful, under-appreciated tool that lets you quickly and easily create reports for not just the web, but for a variety of platforms such as Apple’s iOS and Google Android.

In this course, Introduction to the SQL Server Mobile Report Publisher, you’ll learn to quickly and easily create dashboards for the web, as well as mobile devices such as phones and tablets.

First, you’ll explore how to use the Report Publisher designer to create the layout of the dashboard.

Next, you’ll see how to create datasets and bind them to the dashboard.

Finally, you’ll learn advanced features such as filters to limit the data on the dashboard, as well as drillthroughs to launch a detailed report or web page.

When you’re finished with this course, you’ll have the skills and knowledge of the Mobile Report Publisher needed to create dashboards on multiple platforms.

What’s that you say? You don’t have a subscription but want to watch my course? Hey, no problem. Pluralsight has a 10 day free trial. Just go to https://www.pluralsight.com/pricing/free-trial and sign up!

Introduction to the Azure Data Migration Service

My latest course, Introduction to the Azure Data Migration Service, has just gone live on Pluralsight.

More and more companies are migrating their infrastructure, including their databases, to Azure. In this course, Introduction to the Azure Data Migration Service, you will learn foundational knowledge of Microsoft’s migration service.

First, you will learn how to use the Azure Data Migration Assistant to analyze your existing database for any compatibility issues with the Azure SQL platform.

Next, you will discover how to use the same tool to generate and deploy your database schema to an Azure SQL Database. Finally, you will explore how to migrate your data using the Data Migration Service.

When you are finished with this course, you will have the basic skills and knowledge of the Azure Data Migration Service needed to begin moving your databases into Azure.

See my course on Pluralsight at https://www.pluralsight.com/courses/introduction-azure-data-migration-service.

Building Your First SSRS Report–Now on Pluralsight

My newest course, “Building Your First SSRS Report”, is now live on Pluralsight! This course teaches you how to use Visual Studio 2017 to create a professional report for SQL Server 2017 Reporting Services.

This course assumes you’ve never touched SSRS before. It shows you how to create a new project, and create reports using both the built in wizard and manually. Not comfortable writing SQL queries? No problem, the course demonstrates the use of the built in query builder. It even shows you how to deploy your reports to the SSRS Report Portal.

Check out the course today! And if you don’t have a Pluralsight subscription, see my About Arcane Code page for details on how to get a code good for 30 days access to Pluralsight, with which you can watch any of my courses (or anyone else’s for that matter!).

Creating Azure Resource Groups Safely With PowerShell

A few posts back I mentioned that I had become a SimpleTalk author, and that my first post for them was PowerShell Functions For Reusability and Restartability in Azure (read it at http://bit.ly/acred01)

I’ve created a companion video for it, which focuses on creating Resource Groups. You can see it below, or on YouTube at http://bit.ly/acredyt01.

As I mention in the video, you can find the code samples on my github site, at http://bit.ly/acredgit01

VidCon 2017 – Day 2

Below is my update from Day 2 of VidCon 2017. As you’ll see, while I have experience with recording screen presentations I’m still learning the ins and outs of recording myself as video, especially in the audio department.

Bear with me, I’ve already ordered some new equipment to help in the audio world; as I continue to learn things will only get better. While I definitely plan to make screen capture style recordings (such as my PowerShell and XML video) the bulk of my content, I will be doing live presentations, such as this vlog, from time to time.

In the recording I mention several products I saw, the links for which are at the bottom of this post. I want to be clear that these are not paid promotions, nor did I receive any type of compensation. I was just impressed with them and wanted to share.





To find out more about me: http://arcanecode.me

AdultsOnlyMinecraft: https://www.youtube.com/user/AdultsOnlyMinecraft
Social Blade: socialblade.com
Mighty Selfie Stick: bit.ly/10ftSelfie
Katie’s YouTube Channel: https://youtube.com/ktmh9600
LumaFusion: https://luma-touch.com

Encoding Strings to Base64 in C# – The Movie

Way back in 2007 I wrote a blog post entitled “Encoding Strings to Base64 in C#”. This continues to be my #1 referenced post.

The guys over at Webucator have turned my post into an instructional video, and I couldn’t be happier with the results. You can find the video on YouTube at:

https://www.youtube.com/watch?v=r94gKb-NzLM&feature=youtu.be

Make sure to give ‘em a like for all their hard work!

Updating AdventureWorksDW2008R2 for Today

Back in May I did a post called “Updating AdventureWorksDW2012 for Today”. In that post I included a script that would take the AdventureWorksDW2012 sample database, available on CodePlex, and convert it to use current dates.

As part of my job at PragmaticWorks I teach classes on SQL Server Analysis Services. My upcoming class is using SQL Server 2008R2, and as such I wanted to update the 2008R2 version of AdventureWorksDW. I did find some subtle differences between the 2008R2 and 2012 versions of the Adventure Works Data Warehouse that I wanted to post an updated version of the script to use with 2008R2.

If you don’t have the AdventureWorksDW2008R2 data warehouse database, you can obtain it from http://msftdbprodsamples.codeplex.com/releases/view/59211 or go to CodePlex and search for SQL Server 2008 Sample Databases. Note there are several versions of Adventure Works here. The file for the data warehouse is either “AdventureWorks 2008R2 DW Script”, which is a T-SQL script that creates and populates the 2008R2 data warehouse, or “AdventureWorksDW2008R2 Data File” which is a database file you’ll need to reattach.

The structure of the script is basically the same as the one in the first post, so I’ll let you refer back to it for the explanations. Without further ado, here is the script for AdventureWorksDW2008R2, which will create a new AdventureWorksDW2013R2 database.



/*-----------------------------------------------------------------------------------------------*/
/* Updating AdventureWorks2008R2 for Today */
/* */
/* Robert C. Cain, http://arcanecode.com @ArcaneCode */
/* */
/* Script Copyright (c) 2013 by Robert C. Cain */
/* AdventureWorks database Copyright (c) Microsoft. */
/* */
/* This script will make a backup of the AdventureWorks2012DW database, then copy and restore it */
/* as AdventureWorksDW2013. It will then update it for current dates. 2008 now becomes 2013, */
/* 2007 is now 2012, and so forth. This script is dependent on the AdventureWorks2008R2DW sample */
/* database already being installed. It won't change AdventureWorksDW2008R2 in anyway. */
/* */
/* Be warned, if AdventureWorksDW2013R2 exists, it will be deleted as part of this process. */
/* */
/*-----------------------------------------------------------------------------------------------*/

PRINT 'Updating AdventureWorksDW2008R2 for Today - Starting'
GO

/*-----------------------------------------------------------------------------------------------*/
/* Step 1 - Make a copy of AdventureWorksDW2008R2 and restore as AdventureWorksDW2013 */
/*-----------------------------------------------------------------------------------------------*/
SET NOCOUNT ON

USE [master]

-- Step 1.1. Make a backup of AdventureWorksDW2008R2 ----------------------------------------------
PRINT 'Backing up AdventureWorksDW2008R2'
GO

BACKUP DATABASE [AdventureWorksDW2008R2]
TO DISK = N'C:\Program Files\Microsoft SQL Server\MSSQL10_50.SQL2008R2\MSSQL\Backup\AdventureWorksDW2008R2.bak'
WITH NOFORMAT,
INIT,
NAME = N'AdventureWorksDW2008R2-Full Database Backup',
SKIP,
NOREWIND,
NOUNLOAD,
STATS = 10
GO


-- Step 1.2. Delete the database AdventureWorksDW2013 if it exists ------------------------------
PRINT 'Deleting AdventureWorksDW2013R2, if it exists'
GO

IF (EXISTS (SELECT 1
FROM master.dbo.sysdatabases
WHERE name = 'AdventureWorksDW2013R2' )
)
EXEC msdb.dbo.sp_delete_database_backuphistory @database_name = N'AdventureWorksDW2013R2'
GO

IF (EXISTS (SELECT 1
FROM master.dbo.sysdatabases
WHERE name = 'AdventureWorksDW2013R2' )
)
DROP DATABASE [AdventureWorksDW2013R2]
GO

-- Step 1.3. Restore the database to a new copy -------------------------------------------------
PRINT 'Restoring AdventureWorksDW2008R2 to AdventureWorksDW2013R2'
GO

RESTORE DATABASE [AdventureWorksDW2013R2]
FROM DISK = N'C:\Program Files\Microsoft SQL Server\MSSQL10_50.SQL2008R2\MSSQL\Backup\AdventureWorksDW2008R2.bak'
WITH FILE = 1,
MOVE N'AdventureWorksDW2008R2_Data'
TO N'C:\Program Files\Microsoft SQL Server\MSSQL10_50.SQL2008R2\MSSQL\DATA\AdventureWorksDW2013R2_Data.mdf',
MOVE N'AdventureWorksDW2008R2_Log'
TO N'C:\Program Files\Microsoft SQL Server\MSSQL10_50.SQL2008R2\MSSQL\DATA\AdventureWorksDW2013R2_log.ldf',
NOUNLOAD, STATS = 5

GO

PRINT 'Done Creating AdventureWorksDW2013R2'
GO



/*-----------------------------------------------------------------------------------------------*/
/* Step 2. Create a helper function to convert dates to a YYYYMMDD format Date Id. */
/*-----------------------------------------------------------------------------------------------*/

USE [AdventureWorksDW2013R2]
GO

IF EXISTS (SELECT [name] FROM [sys].[all_objects] WHERE [name] = 'DateToDateId')
DROP FUNCTION [dbo].[DateToDateId];
GO

CREATE FUNCTION [dbo].[DateToDateId]
(
@Date DATETIME
)
RETURNS INT
AS
BEGIN

DECLARE @DateId AS INT
DECLARE @TodayId AS INT

SET @TodayId = YEAR(GETDATE()) * 10000
+ MONTH(GETDATE()) * 100
+ DAY(GETDATE())

-- If the date is missing, or a placeholder for a missing date, set to the Id for missing dates
-- Else convert the date to an integer
IF @Date IS NULL OR @Date = '1900-01-01' OR @Date = -1
SET @DateId = -1
ELSE
BEGIN
SET @DateId = YEAR(@Date) * 10000
+ MONTH(@Date) * 100
+ DAY(@Date)
END

-- If there's any data prior to 2000 it was incorrectly entered, mark it as missing
IF @DateId BETWEEN 0 AND 19991231
SET @DateId = -1

-- Commented out for this project as future dates are OK
-- If the date is in the future, don't allow it, change to missing
-- IF @DateId > @TodayId
-- SET @DateId = -1

RETURN @DateId

END

GO




/*-----------------------------------------------------------------------------------------------*/
/* Step 3. Add new dates to the dbo.DimDate table. */
/*-----------------------------------------------------------------------------------------------*/
PRINT 'Adding new dates to dbo.DimDate'
GO

SET NOCOUNT ON

-- Later we will be writing an INSERT INTO... SELECT FROM to insert the new record. I want to
-- join the day and month name memory variable tables, but need to have something to join to.
-- Since everything is calculated, we'll just create this little bogus table to have something
-- to select from.
DECLARE @BogusTable TABLE
( PK TINYINT)

INSERT INTO @BogusTable SELECT 1;


-- Create a table variable to hold the days of the week with their various language versions
DECLARE @DayNameTable TABLE
( [DayNumberOFWeek] TINYINT
, [EnglishDayNameOfWeek] NVARCHAR(10)
, [SpanishDayNameOfWeek] NVARCHAR(10)
, [FrenchDayNameOfWeek] NVARCHAR(10)
)

INSERT INTO @DayNameTable
SELECT DISTINCT
[DayNumberOFWeek]
, [EnglishDayNameOfWeek]
, [SpanishDayNameOfWeek]
, [FrenchDayNameOfWeek]
FROM dbo.DimDate

-- Create a month table to hold the months and their language versions.
DECLARE @MonthNameTable TABLE
( [MonthNumberOfYear] TINYINT
, [EnglishMonthName] NVARCHAR(10)
, [SpanishMonthName] NVARCHAR(10)
, [FrenchMonthName] NVARCHAR(10)
)

INSERT INTO @MonthNameTable
SELECT DISTINCT
[MonthNumberOfYear]
, [EnglishMonthName]
, [SpanishMonthName]
, [FrenchMonthName]
FROM dbo.DimDate


-- Some dates for 2010 are already there so we have to work around it in two passes
-- FiscalDate will be set six months into the future from the CurrentDate
DECLARE @FiscalDate AS DATE

-- Pass 1
DECLARE @FromDate AS DATE = '2010-01-01'
DECLARE @ThruDate AS DATE = '2010-10-31'
DECLARE @CurrentDate AS DATE

-- CurrentDate will be incremented each time through the loop below.
SET @CurrentDate = @FromDate

-- Now we simply loop over every date between the From and Thru, inserting the
-- calculated values into DimDate.
WHILE @CurrentDate <= @ThruDate
BEGIN

SET @FiscalDate = DATEADD(m, 6, @CurrentDate)

INSERT INTO dbo.DimDate
SELECT [dbo].[DateToDateId](@CurrentDate)
, @CurrentDate
, DATEPART(dw, @CurrentDate) AS DayNumberOFWeek
, d.EnglishDayNameOfWeek
, d.SpanishDayNameOfWeek
, d.FrenchDayNameOfWeek
, DAY(@CurrentDate) AS DayNumberOfMonth
, DATEPART(dy, @CurrentDate) AS DayNumberOfYear
, DATEPART(wk, @CurrentDate) AS WeekNumberOfYear
, m.EnglishMonthName
, m.SpanishMonthName
, m.FrenchMonthName
, MONTH(@CurrentDate) AS MonthNumberOfYear
, DATEPART(q, @CurrentDate) AS CalendarQuarter
, YEAR(@CurrentDate) AS CalendarYear
, CASE WHEN MONTH(@CurrentDate) < 7
THEN 1
ELSE 2
END AS CalendarSemester
, DATEPART(q, @FiscalDate) AS FiscalQuarter
, YEAR(@FiscalDate) AS FiscalYear
, CASE WHEN MONTH(@FiscalDate) < 7
THEN 1
ELSE 2
END AS FiscalSemester
FROM @BogusTable
JOIN @DayNameTable d
ON DATEPART(dw, @CurrentDate) = d.[DayNumberOFWeek]
JOIN @MonthNameTable m
ON MONTH(@CurrentDate) = m.MonthNumberOfYear

SET @CurrentDate = DATEADD(d, 1, @CurrentDate)
END

-- Pass 2
-- This is the start and end date ranges to use to populate the
-- dbo.DimDate dimension. Change if it's 2014 and you run across this script.
SET @FromDate = '2010-12-01'
SET @ThruDate = '2013-12-31'

-- CurrentDate will be incremented each time through the loop below.
SET @CurrentDate = @FromDate

-- Now we simply loop over every date between the From and Thru, inserting the
-- calculated values into DimDate.
WHILE @CurrentDate <= @ThruDate
BEGIN

SET @FiscalDate = DATEADD(m, 6, @CurrentDate)

INSERT INTO dbo.DimDate
SELECT [dbo].[DateToDateId](@CurrentDate)
, @CurrentDate
, DATEPART(dw, @CurrentDate) AS DayNumberOFWeek
, d.EnglishDayNameOfWeek
, d.SpanishDayNameOfWeek
, d.FrenchDayNameOfWeek
, DAY(@CurrentDate) AS DayNumberOfMonth
, DATEPART(dy, @CurrentDate) AS DayNumberOfYear
, DATEPART(wk, @CurrentDate) AS WeekNumberOfYear
, m.EnglishMonthName
, m.SpanishMonthName
, m.FrenchMonthName
, MONTH(@CurrentDate) AS MonthNumberOfYear
, DATEPART(q, @CurrentDate) AS CalendarQuarter
, YEAR(@CurrentDate) AS CalendarYear
, CASE WHEN MONTH(@CurrentDate) < 7
THEN 1
ELSE 2
END AS CalendarSemester
, DATEPART(q, @FiscalDate) AS FiscalQuarter
, YEAR(@FiscalDate) AS FiscalYear
, CASE WHEN MONTH(@FiscalDate) < 7
THEN 1
ELSE 2
END AS FiscalSemester
FROM @BogusTable
JOIN @DayNameTable d
ON DATEPART(dw, @CurrentDate) = d.[DayNumberOFWeek]
JOIN @MonthNameTable m
ON MONTH(@CurrentDate) = m.MonthNumberOfYear

SET @CurrentDate = DATEADD(d, 1, @CurrentDate)
END
GO

-- If you want to verify you can uncomment this line.
-- SELECT * FROM dbo.DimDate WHERE DateKey > 20110000

PRINT 'Done adding new dates to dbo.DimDate'
GO


/*-----------------------------------------------------------------------------------------------*/
/* Step 4. Update the Fact Tables with the new dates. */
/*-----------------------------------------------------------------------------------------------*/


PRINT 'Update Fact Tables'
GO

SET NOCOUNT ON

-- To move forward five years, we simply add 50,000 to the date key

-- 4.1 FactFinance ------------------------------------------------------------------------------
PRINT ' FactFinance'
GO

UPDATE [dbo].[FactFinance]
SET [DateKey] = [DateKey] + 50000;


-- 4.2 FactInternetSales ------------------------------------------------------------------------
PRINT ' FactInternetSales'
GO

-- There are a few rows where the due date is on leap year. Update these to back off a day
-- so the date add works OK
UPDATE [dbo].[FactInternetSales]
SET [OrderDateKey] = 20080228
WHERE [OrderDateKey] = 20080229

UPDATE [dbo].[FactInternetSales]
SET [DueDateKey] = 20080228
WHERE [DueDateKey] = 20080229

UPDATE [dbo].[FactInternetSales]
SET [ShipDateKey] = 20080228
WHERE [ShipDateKey] = 20080229

-- Now update the rest of the days.
UPDATE [dbo].[FactInternetSales]
SET [OrderDateKey] = [OrderDateKey] + 50000
, [DueDateKey] = [DueDateKey] + 50000
, [ShipDateKey] = [ShipDateKey] + 50000


-- 4.3 FactResellerSales ------------------------------------------------------------------------
PRINT ' FactResellerSales'
GO

-- As with Internet Sales, there are rows where the due date is on leap year.
-- Update these to back off a day so the date add works OK
UPDATE [dbo].[FactResellerSales]
SET [OrderDateKey] = 20080228
WHERE [OrderDateKey] = 20080229

UPDATE [dbo].[FactResellerSales]
SET [DueDateKey] = 20080228
WHERE [DueDateKey] = 20080229

UPDATE [dbo].[FactResellerSales]
SET [ShipDateKey] = 20080228
WHERE [ShipDateKey] = 20080229

-- Now update the table
UPDATE [dbo].[FactResellerSales]
SET [OrderDateKey] = [OrderDateKey] + 50000
, [DueDateKey] = [DueDateKey] + 50000
, [ShipDateKey] = [ShipDateKey] + 50000

-- 4.4 FactSalesQuota ---------------------------------------------------------------------------
PRINT ' FactSalesQuota'
GO

UPDATE [dbo].[FactSalesQuota]
SET [DateKey] = [DateKey] + 50000

-- 4.5 FactSurveyResponse -----------------------------------------------------------------------
PRINT ' FactSurveyResponse'
GO

UPDATE [dbo].[FactSurveyResponse]
SET [DateKey] = [DateKey] + 50000

-- 4.6 FactCallCenter ---------------------------------------------------------------------------
PRINT ' FactCallCenter'
GO

-- All the rows in call center have a 2010 date, just add 3 years to make these 2013
UPDATE [dbo].[FactCallCenter]
SET [DateKey] = [DateKey] + 30000


-- 4.7 FactCurrencyRate -------------------------------------------------------------------------
PRINT ' FactCurrencyRate'
GO

-- Because the DateKey is part of the PK, we have to drop the key before we can update it
ALTER TABLE [dbo].[FactCurrencyRate] DROP CONSTRAINT [PK_FactCurrencyRate_CurrencyKey_DateKey]
GO

-- Shift the 2008 Leap Year days to 2012 Leap Year
UPDATE [dbo].[FactCurrencyRate]
SET [DateKey] = 20120229
WHERE [DateKey] = 20080229

-- Update everything except the leap year we fixed already
UPDATE [dbo].[FactCurrencyRate]
SET [DateKey] = [DateKey] + 50000
WHERE [DateKey] <> 20120229

-- Add the PK back
ALTER TABLE [dbo].[FactCurrencyRate]
ADD CONSTRAINT [PK_FactCurrencyRate_CurrencyKey_DateKey] PRIMARY KEY CLUSTERED
( [CurrencyKey] ASC,
[DateKey] ASC
)
WITH ( PAD_INDEX = OFF
, STATISTICS_NORECOMPUTE = OFF
, SORT_IN_TEMPDB = OFF
, IGNORE_DUP_KEY = OFF
, ONLINE = OFF
, ALLOW_ROW_LOCKS = ON
, ALLOW_PAGE_LOCKS = ON
) ON [PRIMARY]
GO


PRINT 'Done updating the Fact tables'
GO



/*-----------------------------------------------------------------------------------------------*/
/* Step 5. Cleanup, remove the helper function we added earlier. */
/*-----------------------------------------------------------------------------------------------*/
PRINT 'Removing Helper Function'
GO

IF EXISTS (SELECT 1 FROM [sys].[all_objects] WHERE [name] = 'DateToDateId')
DROP FUNCTION [dbo].[DateToDateId];
GO

/*-----------------------------------------------------------------------------------------------*/
/* All done! */
/*-----------------------------------------------------------------------------------------------*/
PRINT 'Updating AdventureWorksDW2008R2 for Today - Completed'
GO

PowerShell, Atlanta Techstravaganza, and reading the PowerScripting.net RSS Feed with PowerShell

Today I had the pleasure of co-presenting “What’s new in Windows 8 PowerShell” (aka PowerShell v3) with my friend, Microsoft Regional Developer Evangelist Glen Gordon (blog | twitter).

You can find the slide deck for our presentation here.

We had a lot of code demos in the presentation, and some due to the short time period we didn’t get to. I’ll be posting the demos over the next few weeks, doing it slowly so as not to overwhelm anyone.

Below is the code to pull the RSS feed for the PowerScripting podcast. The code is pretty self explanatory, see the comments for more info.

#region Reading RSS Feeds

  #----------------------------------------------------------------------------
  # Reading RSS Feeds
  #----------------------------------------------------------------------------

    # Reading RSS Feeds has become even easier in v3
    $url = "http://feeds.feedburner.com/Powerscripting?format=xml"

    # v2 Syntax
    $webClient = New-Object net.webclient
    [xml]$rss = $webClient.DownloadString($url)
    $rss.rss.channel.item |
       Select-Object Title, pubDate, duration  |
       Format-List

    # v3 Syntax
    Invoke-RestMethod $url |
       Select-Object Title, pubDate, duration  |
       Format-List

    # To know the available object names, open the RSS
    # feed and look at the XML tags inside. The ones
    # shown in this example are pretty commong to most feeds.

#endregion Reading RSS Feeds
