SQL Server SSIS SSDT Error – Method Not Found: Microsoft.SqlServer.Dts.Design.VisualStudio2012Utils.IsVisualStudio2012ProInstalled

Every so often, especially when setting up a new virtual machine, at some point I get this error when working in SSIS:




It happens often enough that, to be honest, I mostly wanted to make this as a record to myself and friends, but I am hopeful that you will be helped as well. And to give credit where it is due, I found the original answer at Stack Exchange:


The steps are pretty straight forward.

1.  First, if you have Visual Studio open, close it.

2. In the classic Windows menu go to Start, All Programs, Microsoft Visual Studio 2012, Visual Studio Tools, and right click on the “Developer Command Prompt for VS2012” and pick “Run as administrator”. If you are in Windows 8 or Server 2012 or later, probably easiest to just do a search for “Developer Command Prompt for VS2012”.

3. Navigate to Visual Studio’s Private Assemblies folder by entering “CD C:\Program Files (x86)\Microsoft Visual Studio 11.0\Common7\IDE\PrivateAssemblies”  (If you have installed VS to another drive or folder, adjust the path accordingly).

4. Enter the command “gacutil /if Microsoft.SqlServer.Dts.Design.dll” into the command prompt.




Now you should be able to open your SSIS projects.

The dll is the main set of libraries for SQL Server Integration Services. For some reason, after certain Windows updates, this becomes deregistered and you have to manually add it back. Not a huge deal, but annoying if it happens often enough. As I just had it happen today after a Windows update to the Hyper-V VM I use for some of my SQL Server development, I wanted to post this as a reminder on how to correctly fix the issue.


Dealing with the Date Dimension Deployment Dilemma

For those of you who have routines that load up a date dimension, you know that it can be a little slow to run. There are times when I am deploying my database project (hey, you are using SSDT SQL Server Database Tools SQL Server Projects aren’t you???) and I want to recreate the database from scratch. While it is a great opportunity to grab another cup of coffee, tea, or read through a fantastic blog like this one, after doing this a few times you wind up with a bad case of caffeine jitters.

I had a date dimension to load today that was particularly challenging. They legitimately needed a couple hundred years worth of dates, plus there were some special calculated columns that needed to be populated. All total it took about 25 minutes to populate, on a reasonably decent sized server. Ouch. So I came up with an alternate solution that I thought I’d share with you, my adoring public (at least is seems like it from the spam comments that appear as love letters lol).

I created a second database project as part of my same solution. You can name it something generic, like “DateData”, or if you are using a date routine specific to each project, you can name it after your project database with something like “Dates” or “DateData” at the end.

This new project has two files. One is the create table script to create the only table, DimDate. The second is a post deployment script, in which I just copied over the original date dimension population script from the original project. I was able to deploy this, waiting the 25 minutes or so for it to populate my date dimension.

Back in the main database project, I deleted the code in the DimDate population post deployment script, and simply put in an INSERT statement to insert the rows in the DateData’s DimDate into the main projects DimDate. Load time was maybe 50 seconds, although it may have been shorter as I looked away for a moment.

The beauty of this is I only had to do a real load of DimDate once, since the date dimension isn’t likely to change during development, or generally at any point. Once your project is complete and on-line, you can even delete the DateData database. Should you need it again you can simply recreate it from the DateData project that was part of your solution. I can now do a full drop and create deployment (aka Publish in SSDT) as often as I want without risking caffeine poisoning or being condemned to staying awake all night doing a Phineas and Ferb marathon (which actually sounds kinda fun, now I wish I hadn’t fixed this issue. Oh well.)

SQL Server Data Tools in Visual Studio 2012–Customizing the Table Designer Layout

With this post I want to show you a few of the nice shortcuts provided to you in Visual Studio SSDT for quickly customizing the layout of your designers. A few of the items only apply to the table designer, but many apply to other windows within Visual Studio, no matter what project type is being hosted.


Number 1 points to the pane swap button. Clicking it will simply swap the positions of the grid and T-SQL windows, like so:


The double bar pointed to by number 2 is the resizing handle. Click and drag to adjust the amount of space used by either pane.


Note the change of the cursor shape when it’s hovered over the double bars.

There are three buttons pointed to by number 3. The middle one is the default, and indicates you want to split the panes horizontally. If you click the left most of these 3, it will split the panes vertically.


Vertical mode is really nice when you have a super wide screen monitor. As you can see, the three buttons have now shifted to the bottom center of the screen, next to the mouse in the above image.

What if you are working on a really small screen, and don’t even have enough real estate to work comfortably with any size split? Well that’s where the right (or bottom if vertically split) button comes in. Click it to shift to tabbed mode. (Note, I suggest you shift back to the default horizontal split first, otherwise the tabs will be on the right instead of the bottom and not quite as easy to use).


The last button, number 4, is for the T-SQL pane. It’s also found in almost all code editor windows in Visual Studio. Using it you can split the code view so you can see two different sections of you code at the same time.


Great for working with especially large code bases. And this split should exist in any text editor, not just the designer. Whether it’s straight T-SQL, VB.Net, C++, F#, or C# it should work for you.

For a typical desktop user, you’ll probably set these once and forget. But for folks like me who travel a lot, these are a real blessing. When I’m at home, with my laptop hooked up to my 25inch wide screen monitor, I can quickly shift to split screen vertical mode to take advantage of all that width.

When I’m on the road though, working on my laptops small screen (12 inches), I can shift back to horizontal mode, or more often (for me) tabbed mode, for doing my work.

Experiment with different layouts, and find out what works best for you!

SQL Server Data Tools in Visual Studio 2012–Table Designer–Other Objects


Above is the screen shot of where things were left at the end of the previous post. We had just added a new table and used the designer to create four columns, along with their data types. We also saw how we can edit the table in T-SQL and see updates in the designer’s grid above.

But what’s all that stuff to the right of the grid? It would seem to list the various objects that would be associated with a table. In this case there’s only one, the unnamed Primary Key. But through this are we can also add new objects.

Let’s add a simple index. Right click on the Indexes (0) area. from the menu pick Add New, then for this example we’ll pick a standard Index.



When you do, a new index name appears below the Indexes (0) area, with a default name.

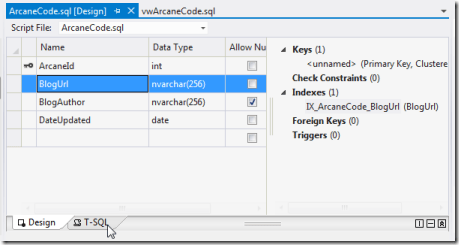

Since this is going to be for the BlogUrl, I’m going to change the name to IX_ArcaneCode_BlogUrl. You’ll see the Indexes collection area has updated to reflect the new name, and the number in parenthesis has been updated to (1), to reflect the number of Indexes.

In the T-SQL area at the bottom, you’ll see some new T-SQL setup and ready for you to update. Here, all you have to do is change the [Column] to be the actual field name you wish to use in the index. In this case, [BlogUrl].


Think of the new designer as a combination of easy to use UI with a code generator. Creating other objects works just like you’ve seen here. You right click, pick what you want to add, and Visual Studio SSDT inserts the code template read for you to update.

SQL Server Data Tools in Visual Studio 2012–Table Designer

One of most noticeable enhancements to the data tools (over the previous database projects) is the table designer. Using the AdvWorks project we started in previous posts, let’s add a new table. Since the dbo schema has few tables, let’s add it there.

Expand the  dbo schema, right click on the Tables folder, right click and pick Add, Table as you can see in this illustration.


Next you’ll be asked to confirm the type of object you wish to add, and what you want to name it. Ensure the “Table” object type is selected (the red arrow points it out below). Then, give your new table a good name. If you use multiple schemas in your database (and you should) then get into the habit of always typing in the schema name before the table name, even if it’s the default schema. This will prevent you from putting tables into the wrong schema, then having to clean up the mess later.


You are now presented with the spiffy new table designer. Using it is fairly straightforward, but has some nice abilities.


You can begin by simply going to the Name area, and typing in new column names. I’m going to start by changing the word Id to ArcaneId. Next, move to the Data Type box and hit the dropdown. You’ll be presented with a dizzying array of data types!

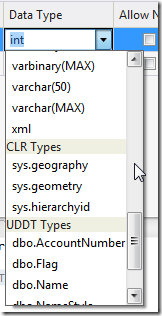

For now I’ll leave it as int, since this will be my primary key, but I’ll add other types momentarily. I’ll leave Allow Nulls off, as well as leaving the default empty. Now add a column by moving down to the next row in the grid, perhaps call it BlogUrl, nvarchar(256). Note that when you pick the nvarchar column type, you’ll have to type right inside the Data Type text area to change the length of the column. Finally add a DateUpdated column, Date data type, an set the default to GETDATE().

Note that as you’ve filled in your columns in the designer, the T-SQL in the box underneath is also updating. It’s a two way street, shift down to the T-SQL code on the bottom. Let’s add a fourth column, but put it under the BlogUrl but above the DateUpdated. Let’s name it BlogAuthor, nvarchar(256), NULL (we’ll allow nulls) and no default.

When you get to the end of the line and VS has confirmed this is valid T-SQL code, it will update the designer area on the top to reflect what you’ve done below.

There is one more thing we should do, something that’s quite common especially in data warehousing. We should have the primary key be an Identity type, that is a column whose value auto-increments with each inserted record. We can’t do that via the designer area at the top. While we could move down to the T-SQL area at the bottom and just type it in, there is a way to do it graphically.

In the designer, click on the row with the ArcaneId. Now go to the Properties window (generally over on the right, below the Solution Explorer if you still have the default VS seutp). About 2/3 the way down you’ll see a property called Identity Specification. Using the + button expand it, then change the Is Identity property to true.


Now your designer window should look something like:


But that’s just the start, for this isn’t just a table designer, but a designer for keys, constraints, indexes, and more! But that will wait for the next post in the series.

SQL Server Data Tools in Visual Studio 2012–Publish Database Profile

One of the new features in SSDT, and what I consider to be my favorite, is the Publish Database Profiles. With database projects you could set a multitude of settings, everything from ANSI NULLS to whether to drop and create the database with each build. The only issue was these settings applied to the entire project; you had to change them each time you wanted to deploy to a different server, or to change the rules (overwrite vs. incremental for example).

New with SSDT are Publish profiles. They allow you to establish a set of rules and save them for reuse. To start with, right click on the project name and pick Publish from the menu.


You’ll now see a blank publish page.


Let’s start by tweaking some database settings. Click the Advanced button on the lower right.


Here you can get to all of the options you can use to fine tune your database deployment. The most common appear at the top, the less changed ones appear in the list below. In this image I’ve checked on the option to Always re-create the database. This option will wipe out the existing database and recreate it from scratch.

Use this particular option with caution, especially if you are doing it to a database you are sharing with your co-workers (or even worse, production!). When your rebuild the database you’ll also lose any data and have to reload. Sometimes this is a good option, especially in the early stages of development when you’ve made massive changes to the database, or perhaps have gone into the database and made a lot of changes outside the scope of SSDT.

There may be other options you need to change, based on your environment or DBA requirements. Once you’ve changed your options click OK to return to the previous screen.

Back on the Publish Database settings dialog I’ll set the target database connection, and the name I want to use for the database. I can also set the output script name if I wish.

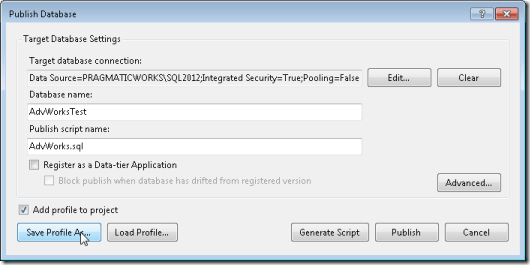

Next, I want to be able to save this profile so I can reuse it later. Check on the “Add profile to project” option in the lower left, then click the Save Profile As… button.


I gave it a good name, and made sure to include the most important options such as RecreateDB to indicate a database recreate was one of the options.

As I write this however, there is a bug with SSDT. When you click the “Add Profile to project” button it immediately adds a profile with the original default name. Then when you click the Save button in the dialog above, it adds the profile again, totally ignoring the name you give it. Instead it uses the default name again, only this time with an _1.

I’ve been assured that this bug is already known and has been fixed, and will be released with the next update to SSDT in VS2012. So depending on when you read this, it may or may not be an issue. Regardless, the fix is very easy, just rename the new .publish.xml file to reflect what you wanted it to be.

Once saved come back and hit Publish. The database will now be deployed to the server and the profile will be added to the solution. Here it is, after I’ve renamed the publish profile.

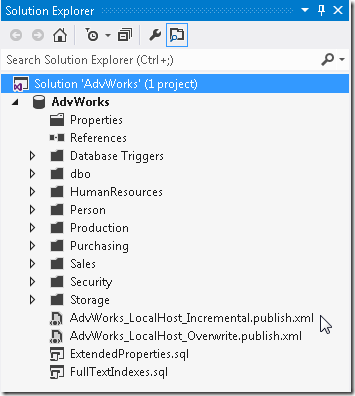

Note that I’ve given it a naming convention that specifies the database name, the target server, and any critical options. Here I’ve added “Overwrite” to indicate what will happen when I run it.

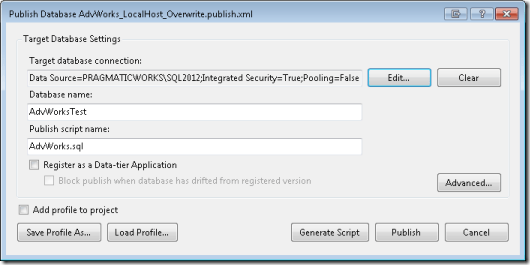

To run it, just double click on it. First, Visual Studio will do a build of the SSDT project. If there are any errors the process will be halted and you’ll need to fix them. If not, you’ll be presented with the publish dialog, this time with everything filled out.


All you have to do is click Publish and the database will be created/updated using the options you’d picked previously, to the server which you had previously indicated.

Now for the real fun. Repeat the above steps only this time do NOT check the overwrite database option. Now, (after renaming the new profile) you have two publish profiles to pick from.


Take this even further. In my current project I have 8 profiles. An incremental and overwrite option for my local computer, the development server, the user acceptance testing server, and the production server. (In my case it’s a one man project, I’m the developer and the DBA all in one.) No longer do I have to juggle the server name, or even worse do a publish but forget to change the server from production back to local.

By far I think this is my favorite feature in SSDT.

SQL Server Data Tools in Visual Studio 2012–Importing a Database

In the previous post we saw how to create a new project using SSDT. In this entry we’ll see how to import an existing database into the project. Start by right clicking on the project (not the solution) and pick Import, Database.


The Import Database is similar to the one from the 2010 database projects, but simplified. Use the New Connection button to setup a connection to your database (here I picked Adventure Works 2012). Target Project is disabled, since it’s in the context of the current project.

Import settings can be left at their defaults. The one thing to note is the Folder structure drop down. I personally prefer the default of Schema\Object Type. You can also pick None, which will put all the SQL files in the root of the project. I wouldn’t recommend this option, as it will quickly get difficult to find the files you need to edit. You can also organize by just Schema, or just Object Type. If you are a hard core DBA you might find Object Type more comfortable, since it’s closer to the Object Explorer in SSMS. As I said though, my experience has been Schema\Object Type is the easiest to work with.


When it’s done just click finish, and you’ll see the new structure in the Solution Explorer. Each folder at the top level represents a Schema, or database level object such as Database Triggers.

In the image below, you can see I expanded two of the schemas, HumanResources and Person. Under these are folders for all of the present object types.


Note that the HumanResources schema has a folder for Stored Procedures, while Person does not. This is simply because in the database the Person schema has no stored procedures. If you want to add a stored procedure to the Person schema, you’ll want to add a folder to the Person structure and name it Stored Procedures. This isn’t required, you can put the SQL file anywhere you want, but if you mimic the existing organization structure you’ll make it much easier to maintain and expand the SSDT project as you move forward.

Lets expand a branch to see all the files.


Finally! We’ve drilled down to the lowest level and can see the individual files that are needed to make up the project.

In the next installment we’ll look at altering some of the database settings. Over the next few weeks we’ll be looking at deployment tools, database snapshots, and how to edit the various file types, and some of the enhancements there, especially around the table editor.

SQL Server Data Tools in Visual Studio 2012

In August I’ll be giving a couple of presentations at devLink. One of them will be on the new SQL Server Data Tools that was released with SQL Server 2012. As you may be aware, I’ve been a proponent of Visual Studio Database Projects since their initial release with Visual Studio 2005.

With SQL Server 2012 the SQL team took ownership of the database projects. They completely retooled them so now they can release them as “out of band” add-ons for Visual Studio. The new version is called SQL Server Data Tools, or SSDT for short. It’s included with VS2012, or you can download a version compatible with Visual Studio 2010 at http://msdn.microsoft.com/en-us/data/tools.aspx.

I’ve been using it for a real world production project for some time now. While I like it, there are some major differences between the new SSDT and the former database projects. Over the next few blog posts I want to highlight some of those differences, culminating with the devLink presentation.

For this series of posts I’ll be using the Visual Studio 2012 Release Candidate, which from here on I’ll simply refer to as VS2012. As this is a Release Candidate there shouldn’t be any noticeable changes between now and the final release.

If you are still on VS 2010 don’t fret, what I’ll describe applies to it as well, assuming you have gone to the link above and downloaded the SSDT add in.

The first difference is with creating a new project. With VS 2012 the older database projects are gone. Only in 2010 can you still do both. Here’s the new project screen shot from VS2010:



Here is the screen shot from VS2012.


As you can see, the Database branch is gone and only the SQL Server Database Project exists.

Now for the next difference. With VSDB Projects, when you created a new project you were immediately walked through a wizard that helped you with various default choices, and allowed you to import a database. With SSDT, once you create a new project you are given a blank slate, an empty project to start from.


If you are creating a new database from scratch, it is left to you to create the entire folder structure, and to name your files correctly.

I’d highly suggest though that you import at least one database, to see how the wizard organizes things, so that you can follow suit. Importing a database is as easy as it was in VSDB Projects, but we’ll save that for the subject of the next blog post.
