Fun With KQL – Format_TimeSpan

Introduction

In my previous post, Fun With KQL – Format_DateTime, we showed how to use the format_datetime function to reformat a date to your liking.

If you refer back to my post Fun With KQL – DateTime Arithmetic, you may recall that when you perform any math with datetime data types, such as subtracting one date from another to get the amount of elapsed time, the resulting data type is a timespan.

In this post, we’ll see how to format timespan data types using the format_timespan function.

A timely reminder, be aware that the samples in this post will be run inside the LogAnalytics demo site found at https://aka.ms/LADemo. This demo site has been provided by Microsoft and can be used to learn the Kusto Query Language at no cost to you.

If you’ve not read my introductory post in this series, I’d advise you to do so now. It describes the user interface in detail. You’ll find it at https://arcanecode.com/2022/04/11/fun-with-kql-the-kusto-query-language/.

Note that my output may not look exactly like yours when you run the sample queries for several reasons. First, Microsoft only keeps a few days of demo data, which are constantly updated, so the dates and sample data won’t match the screen shots.

Second, I’ll be using the column tool (discussed in the introductory post) to limit the output to just the columns needed to demonstrate the query. Finally, Microsoft may make changes to both the user interface and the data structures between the time I write this and when you read it.

Format_TimeSpan Basics

In this first example, we’ll look at some of the simple, basic ways to format a timespan using the format_timespan function.

First, we take the Perf table and get the last three days of data. Then we use a take to grab just a few rows for this sample.

Next we use the extend operator to do some datetime arithmetic, to see how far in the past the TimeGenerated column was from the time right now. This results in the TimeGen column, which is a timespan datatype.

We use the project operator to grab a few relevant columns, then we have four entires to demonstrate the format_timespan function.

The d character is the place holder for the number of days. For each d provided it will display the days. If there are more ds than there were days, it will pad the day value with leading zeros. For example, if the timespan held 33 days, and you used dddd in the function, the result would be 0033.

Next come the placeholders for hours, minutes, seconds, and sub-seconds. These behave just like they do with format_datetime. Below is a chart with the list of allowed formatting characters.

Time Placeholder Result
d Days, number of d’s indicates how many 0s to use
H Hour, 1 to 23 (24 hour clock)
HH Hour, 01 to 23 (24 hour clock)
m Minute, 0 to 59
mm Minute, 00 to 59
s Second, 0 to 59
ss Second, 00 to 59
f Sub-second
F Sub-second for non-zero vales

Note that the 12 hour clock format of h (lowercase h’s) is not valid. This function measures the number of elapsed hours, not the time of the day.

There’s also an assortment of separator characters we can use to separate the individual parts of our timespan, namely the days, hours, minutes and so on.

Separator Character
/ Forward Slash
Dash
: Colon
, Comma
. Period
_ Underscore
[ Left square bracket
] Right square bracket
Space

Format TimeSpan Examples

Below is a screen shot with a query where I created many variations using format_timespan.

You may wish to open up this image in a new browser tab so you can easily read it. Because there were so many columns I expanded the second row so you could easily reference all the different formats.

Note that these are not set in stone. I randomly picked a variety of formats, using different characters and separators. You can adapt these to any format you need.

In the extend I used the endofweek function to get the difference between the TimeGenerated and the end of the current week. Honestly, for this example, I did this just so we could get some non zero values in the day position of our output. You could use this method though with any of the startof... or endof... functions.

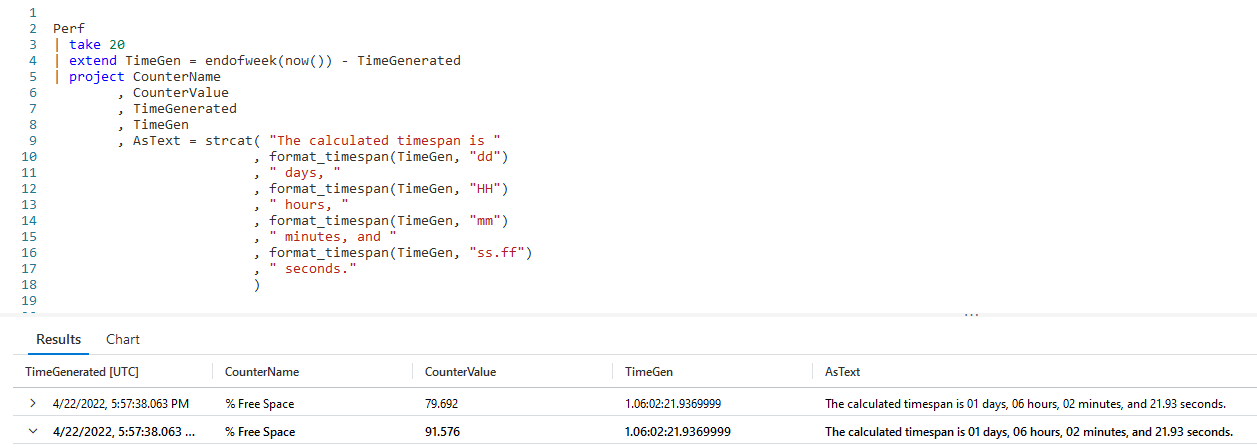

Composing a Sentence using Format_TimeSpan and StrCat

In a future post I’ll go more into the strcat function, but for now just understand that strcat takes all of the values passed in as parameters, and composes them into a single string.

See Also

The following operators, functions, and/or plugins were used or mentioned in this article’s demos. You can learn more about them in some of my previous posts, linked below.

Fun With KQL – Between

Fun With KQL – DateTime Arithmetic

Fun With KQL – EndOf

Fun With KQL – Extend

Fun With KQL – Format_DateTime

Fun With KQL – Project

Fun With KQL – StartOf

Fun With KQL – Take

Fun With KQL – Where

Conclusion

In this article we saw how to use the format_timespan function to create custom formats for the timespan datatype, typically the result of datetime arithmetic.

Our next post will continue the discussion of datetime functions within the Kusto world.

The demos in this series of blog posts were inspired by my Pluralsight courses Kusto Query Language (KQL) from Scratch and Introduction to the Azure Data Migration Service, two of the many courses I have on Pluralsight. All of my courses are linked on my About Me page.

If you don’t have a Pluralsight subscription, just go to my list of courses on Pluralsight . At the top is a Try For Free button you can use to get a free 10 day subscription to Pluralsight, with which you can watch my courses, or any other course on the site.
