Make Your SSAS Data Source View Pretty

Anyone who works with SSAS (SQL Server Analysis Services) knows the DSV (Data Source View) is the key to the project. It is through the DSV that everything else is built on. Unfortunately, in most projects I’ve worked on, it is generally the biggest mess.

Take this simple example cube based on the Adventure Works data warehouse.


What a mess! Fortunately there is a very simple way to clean it up.

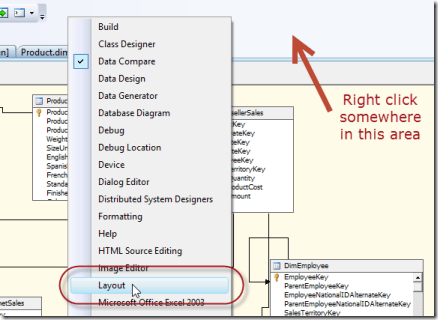

Go up to the toolbar area. Right click to bring up a list of available toolbars, and pick the Layout.


Now you see a new toolbar appear:

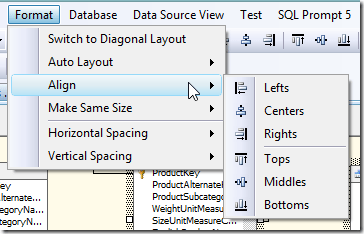

Hover your mouse over each item, you’ll see tool tips such as Left Alight, Right Alight, Align Tops, and more. Note that in the menus there is a menu named Format. The same items on the toolbar also appear in the menu. I find it a little easier to use the toolbar, but do what you are comfortable with.


OK, now that we have our tools ready, we can start cleaning up that messy DSV. There are two ways to select the tables (or views) that we want fix up. First, you can simply click in an empty area of the design surface and drag the mouse. A little dotted line outline will appear showing you which tables will be in the selection.


The other option is to click on the first table, what is known as the “reference”. You’ll know the reference because it has white border handles. Then CTRL+Click on the other tables you wish to align, or make the same size as, the reference table. You’ll know these because they have a thick black square on the sides and border.

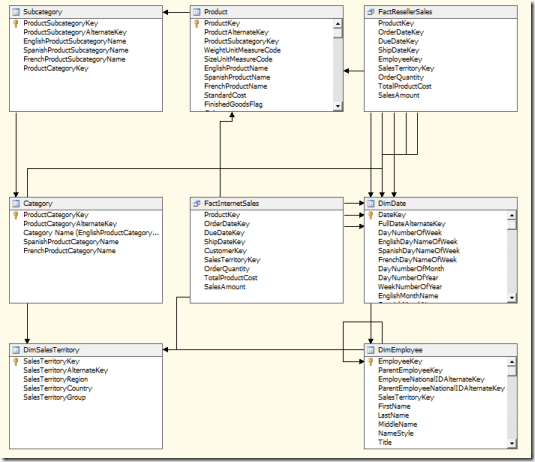

Now go to the layout bar or the menu, and find the button for align lefts. Click, then click the button for make same width. Repeat the process for the other tables in the DSV. When you are done it could look this pretty:


With just a few minutes work your DSV is now organized into neat rows and columns of uniform width. This makes it much easier to read. Your eye is not distracted by the jagged alignment and the uneven widths. Instead, you can much more easily focus on the text inside the boxes, which is after all the important part.

One last tip, if you wish to move the selected table (or tables) a bit, hold down the CTRL key, then use the arrows to move everything in tiny steps to the position you want.

I did the above example using SQL Server 2008R2 BIDS, this technique also works with the SQL Server Data Tools that shipped with SQL Server 2012 (SSDT, aka Visual Studio 2010) and with the newer SSDT for Visual Studio 2012.

About these ads

2 Responses to “Make Your SSAS Data Source View Pretty”

  1. MarkGStacey Says:

    The biggest tidying I do is to use the diagram organiser, maybe worth a mention?

  2. anonymous Says:

    It’s still ugly to me; in fact it looks worse with all the tables the same size. I want better arrow layout without them crossing over each other or behind tables (if possible) and with the minimum number of bends (straight lines are best). The designer is hell for people with OCD! :-)
